The MIRARI® Cold Plasma System designed and manufactured by General Vibronics, received U.S. Food and Drug Administration (FDA) cleared in November 2024 (Certificate No. 3959-1-2025-1) marking a significant milestone in its validation for medical use.

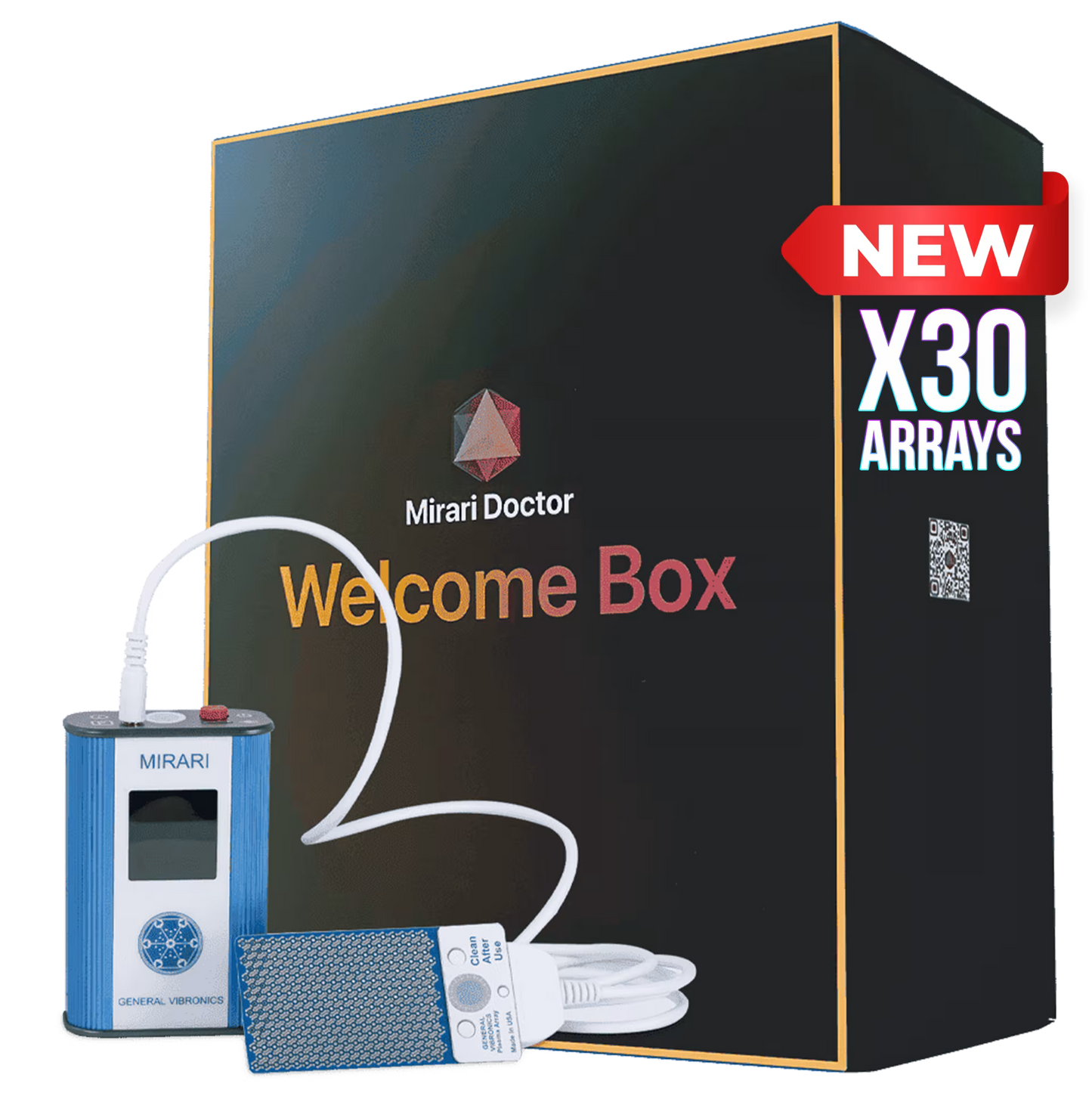

Here's what's included
1x Mirari Plasma Driver
The powerful and user-friendly control center of the Mirari system.

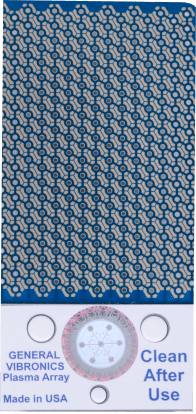

30x Mirari Plasma Arrays
Individually packaged, sterile arrays for precise treatment delivery (600 minutes run-time per array, totalling 100 hours of treatment time).

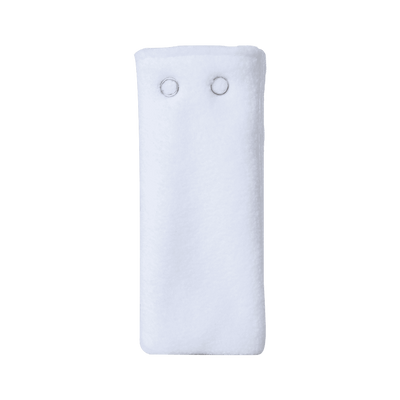

36x Mirari Insulating Fleece Pouches
Single-use pouches for enhanced patient comfort and heat management during treatment.

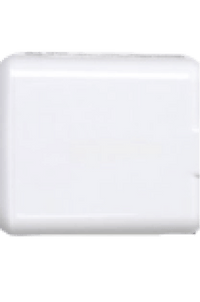

1x Mirari 12-Watt USB Power Adapt
Quickly charges the Mirari Driver's battery for uninterrupted use.
2x Mirari Magnetic Connector Cables
Ensure a secure and reliable connection between the Driver and Arrays.

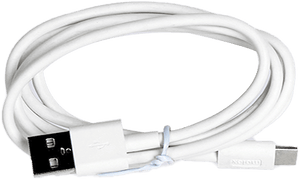

1x Mirari USB-C Charge/Data Cable
Connects the Driver to the power adapter for charging.
Operation Documentation
Quick user instructions and correction of common errors.

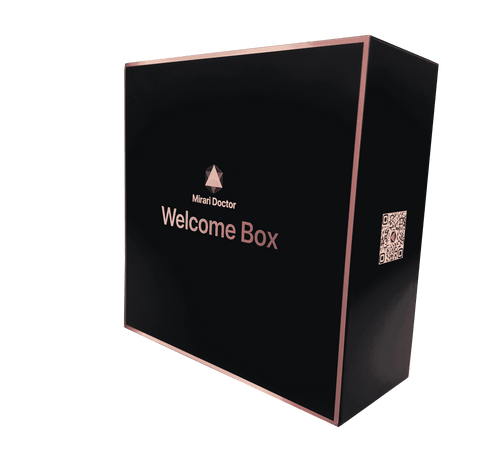

Case
The box for storage and transportation is easy.

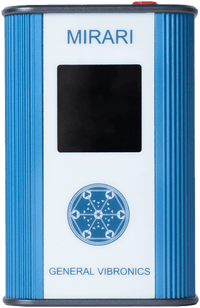

Plasma Driver
Portable Power Supply
Rechargeable power source powered by two 18650 lithium iron phosphate (LiFePO4) battery cells
Immune to thermal runaway (prevents fire hazards)
Fast-acting fuse protection eliminates risk of electrical fires
Embedded safety features
Automatic shutdown in case of: Battery over-temperature, Under-voltage, Over-current
Battery lifespan: 1000–2000 charge cycles
Replacement & repair exclusively by certified technicians and authorized under MIRARI Doctor Vietnam with factory warranty

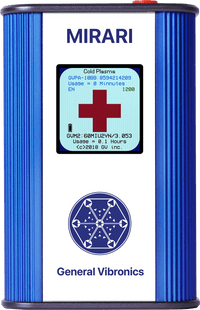

Power Conversion & Plasma Array Operation
Built-in battery powers Plasma Array via AC power conversion circuits
Custom-designed transformer drives the Plasma Array
Resonant circuit formation between transformer and Plasma Array
Operational tuning & fault detection
Automatic tuning to locate resonant frequency
Error detection & shutdown under: Arcing events, Open/short circuits, Excessive losses due to contamination
Full power is applied only if no errors are detected

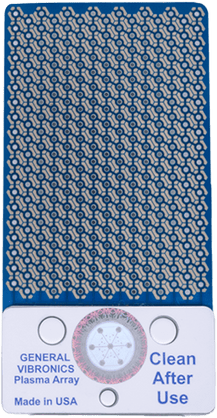

Cold Plasma Generation
Operates via high voltage (low current) Dielectric Barrier Discharge (DBD)
Surface reaction with air humidity produces acidic by-products
Cleaning requirement: Must be cleaned after each use per Operating Manual instructions
- Interconnected tip patterns:
- Concentrate the electric field to precisely initiate plasma discharge
- Maintain the same potential as the cable shield and aluminum Plasma Driver enclosure
- Ensures no electrical current passes through the human body, meeting IEC 60601-1 Type B classification for electrical shock protection
Magnetic Connector Cable
Uses a 3.5 mm audio jack with a custom-molded cable
Magnetic locking mechanism secures the Plasma Array connection
Low-loss dielectric insulation ensures proper operation
Supports authentication between Plasma Array and Plasma Driver
Insulating Pouches for Thermal & Ozone Management
Waterproof ePTFE Pouch
Allows airflow while preventing liquid penetration
Supports proper plasma function
Waterproof ePTFE Pouch
Distributes heat uniformly
Maintains surface temperature ≤ 45°C
Absorbs ozone
Only component in direct contact with patient skin
Charging & Battery Protection
Charged via Wall Charger with USB-C cable
Recommended USB-C Charger: 5V, 2.4A (device-compatible)
Lower-power chargers supported with charge current adjustment if input voltage drops below 4.5V
Battery protection feature: Charging is disabled if battery temperature exceeds 60°C
Status LED indicator:
- Red while charging
- Green when fully charged
